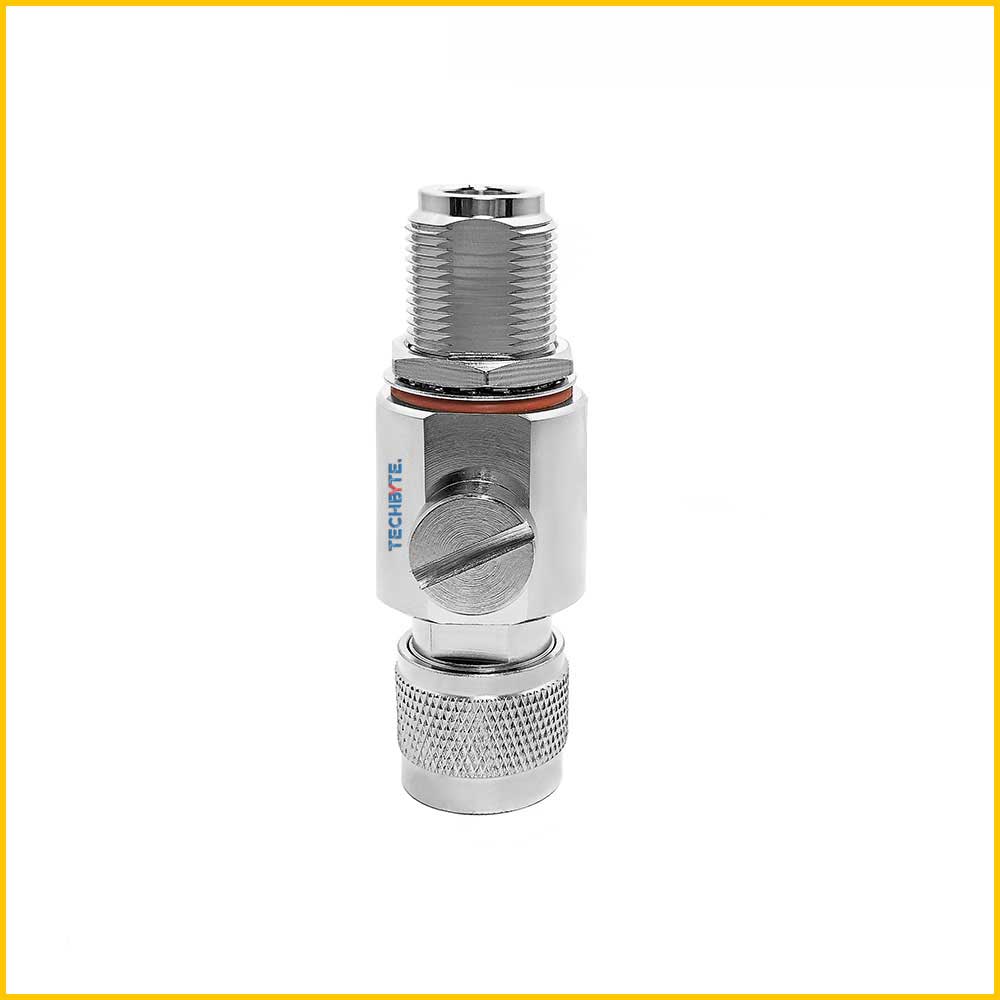

N male to N female Thunder Lightning Arrester for WiFi Antenna or Weak Base Station Waterproof

Waterproof Surge, Thunder, and Lightning Arrester 0-6G N Male to N Female

Freq Range: DC-3GHz / DC-6GHz

Voltage: 90V / 230V / 250V / 350V

Protection: Gas Discharge Tube / 1/4 wavelength

Insertion Loss: <0.4Db

Return Loss: <-26dB

Max Surge Voltage Let Through: <200 mV

Through Put Energy: <5 nJ

Impedance: 50 OHMS / 75 OHMS

Max Power: 50W

Ingress Protection: IP65

Grounding Screw/LUG: Yes

VSWR: <1.15(DC-3G)（DC-6G)

Max Current Load: 10A

Nominal Discharge Current (kAMP): 5 kAMP

Max Discharge Current (kAMP): 20 kAMP

Impulse Current (kAMP): 2.5 kAMP

Operating Temp(degrees C): (-40 to +85) C

ROHS: Yes

ISO-9000 Certified: Yes

Lightning strikes are avoided by using a coax lightning arrestor with a type N male to female connection and a 50 ohm resistance. more grouting cable (AWG 10) is necessary.

230V high surge power capabilities and a replacement Gas Discharge Tube (GDT) element

The N coaxial surge protector has a gold-plated brass center conductor, a nickel-plated brass body, and a Teflon (PTFE) insulator that ensures stable signal transmission.

The type N arrestor protector offers exceptionally low loss DC to 3GHz frequency equipment with VSWR less than 1.2 and Attenuation less than 0.2 dB.

The equipment that has to be safeguarded should have a coax lightning surge arrestor male to female put nearby, frequently where the coax cable meets the equipment.
